Ceiling Running Systems

Ceiling running systems suspend the entire weight of your painting storage from overhead rails, transferring loads to the building's structural supports — leaving the original floor completely untouched.

Available rail configurations:

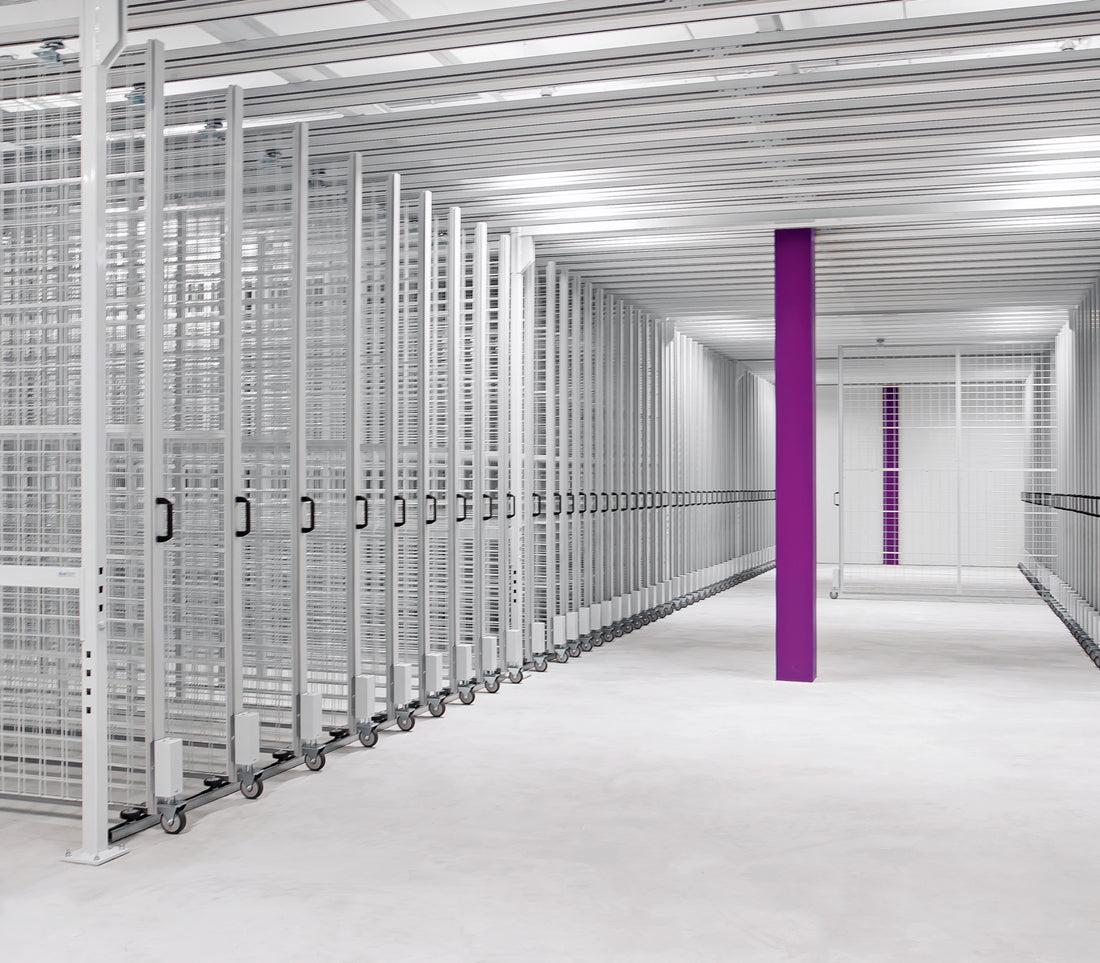

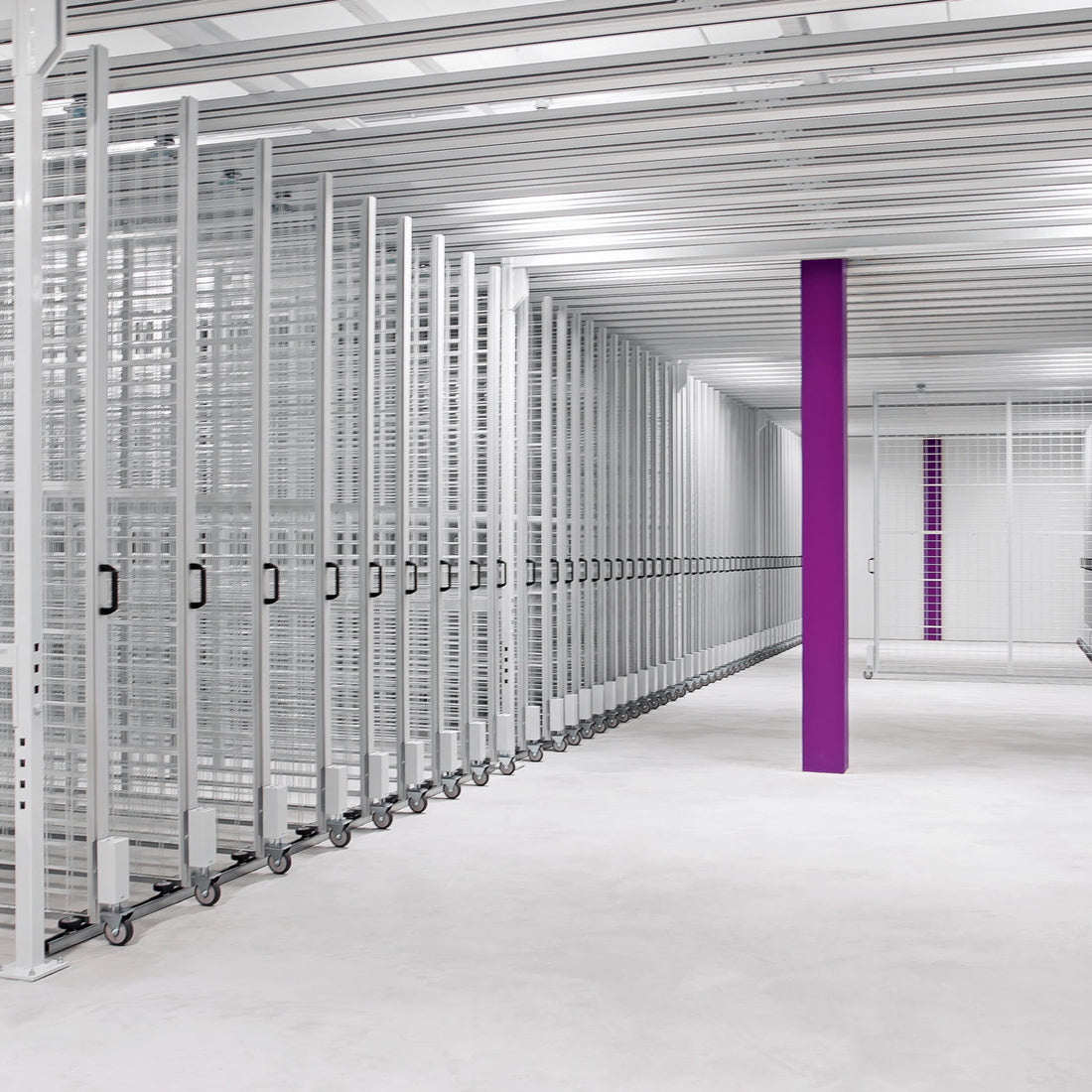

• Aluminum Rails: Run smoothly and quietly with specially manufactured roller units featuring steel ball bearings and heavy-duty plastic rollers. Available for loads up to 400 kg or 800 kg per pull-out rack.

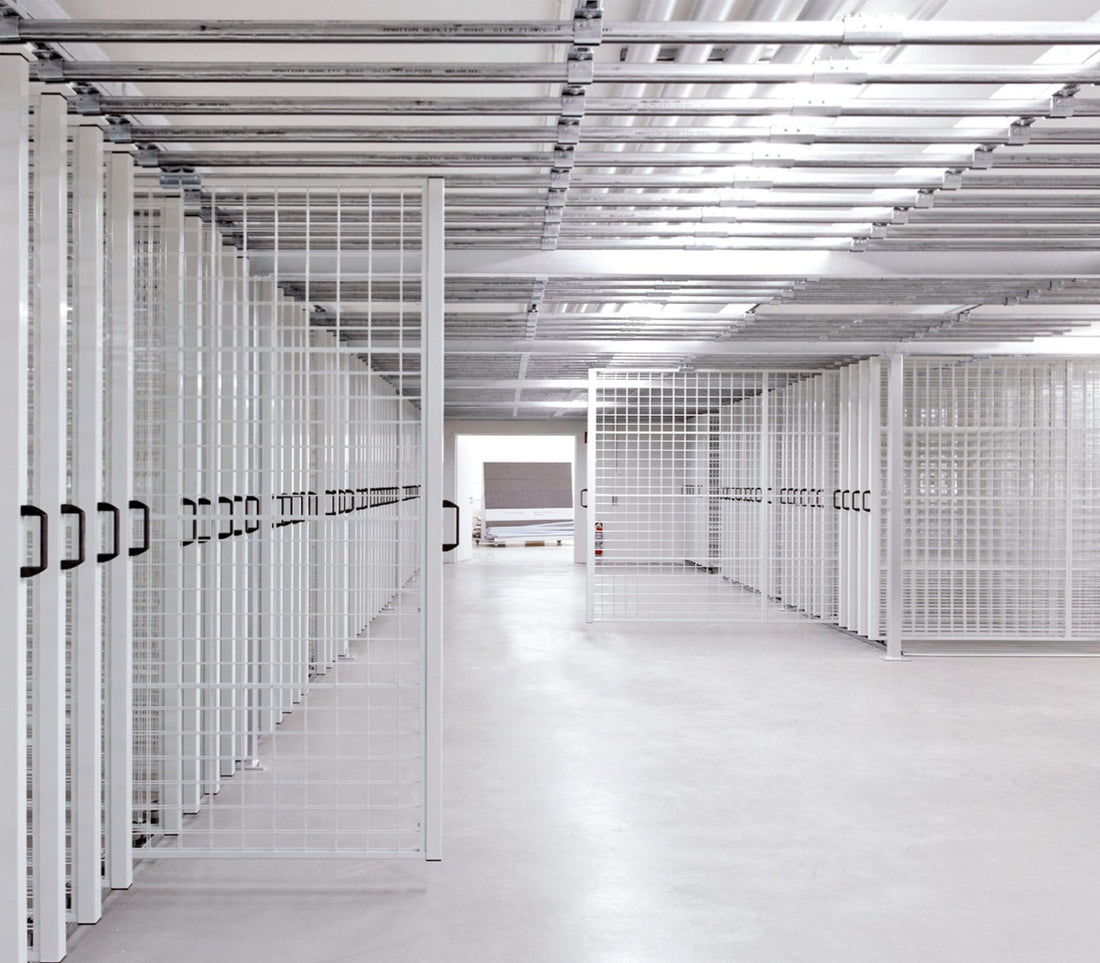

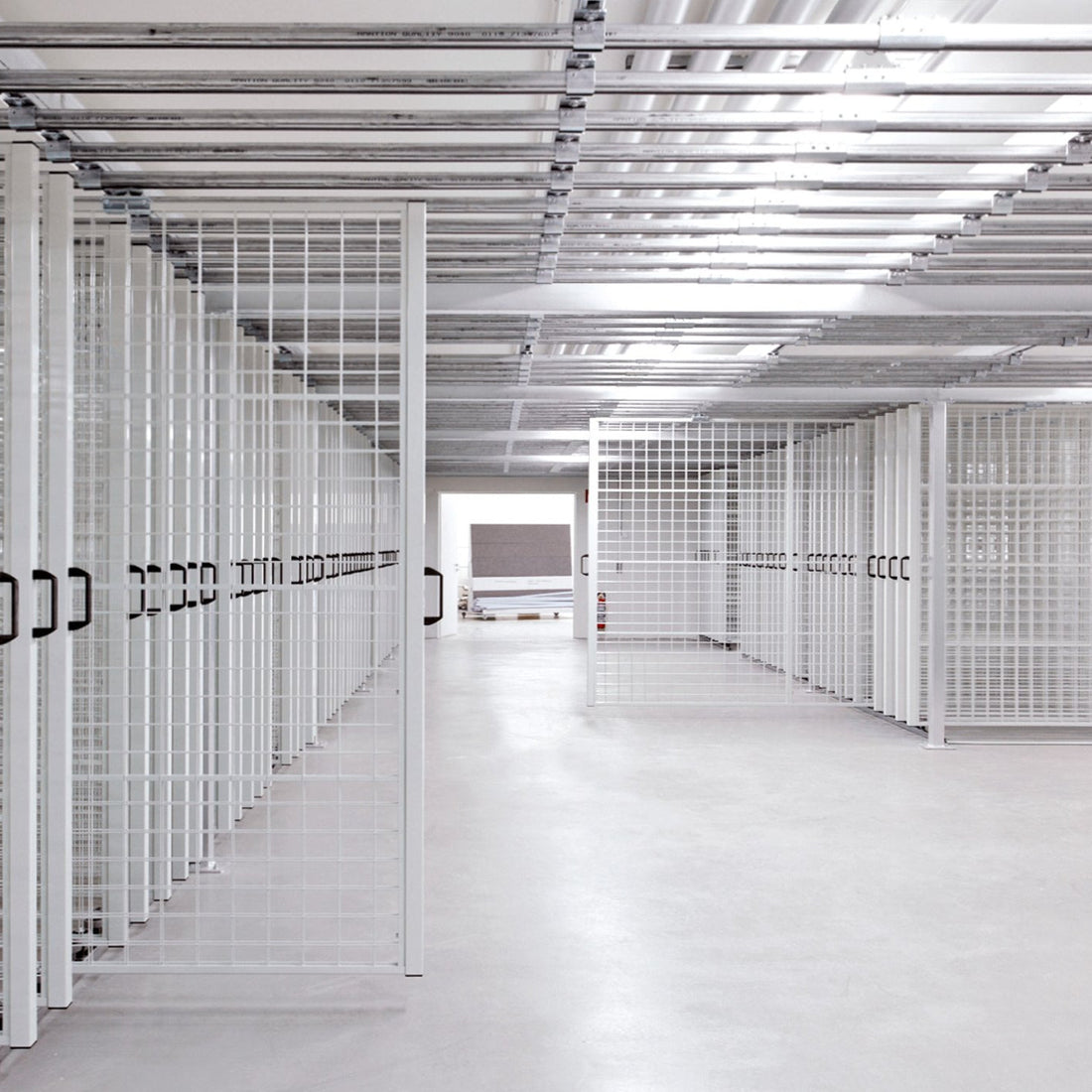

• Steel Rails: Tough and tried-and-tested for demanding environments. Available in two sizes adapted to rack size and load, with roller units using steel ball bearings and steel rollers for maximum load-bearing capacity.

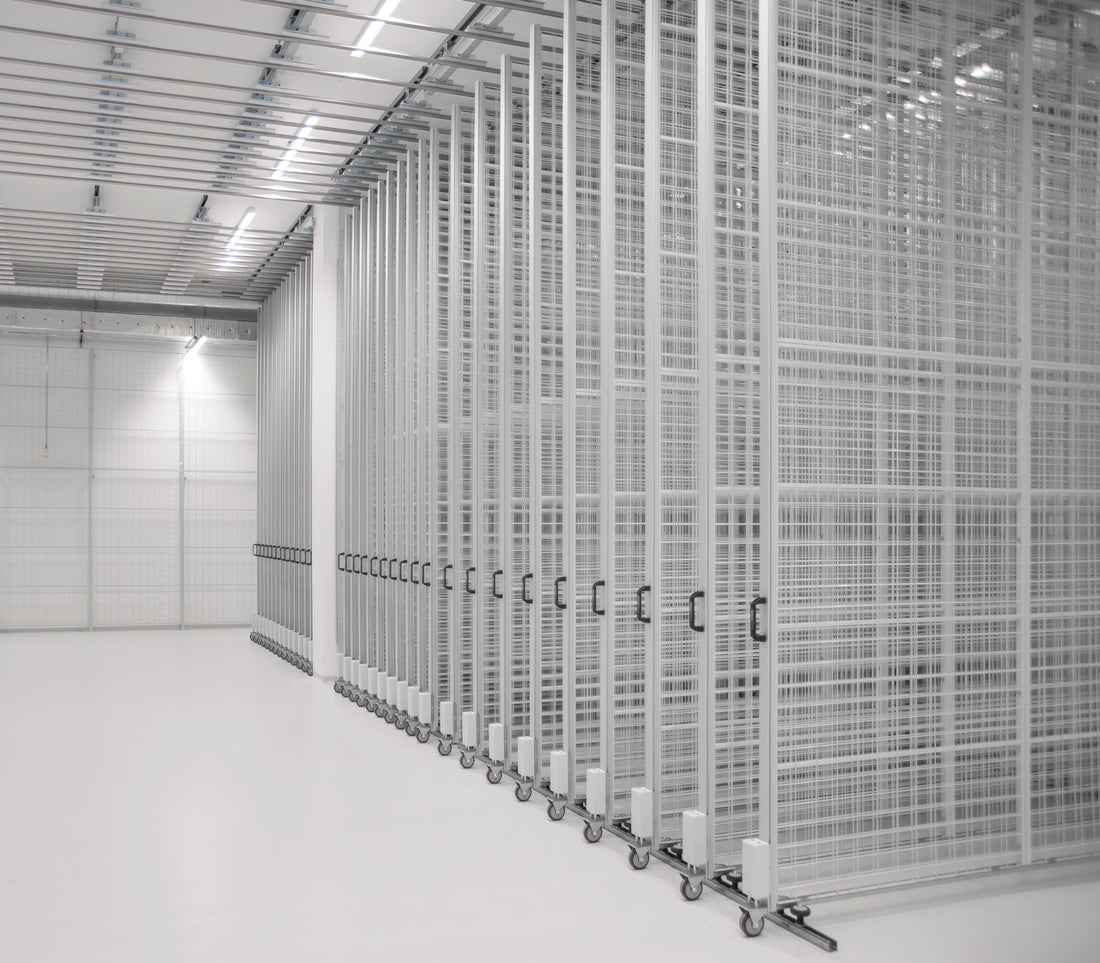

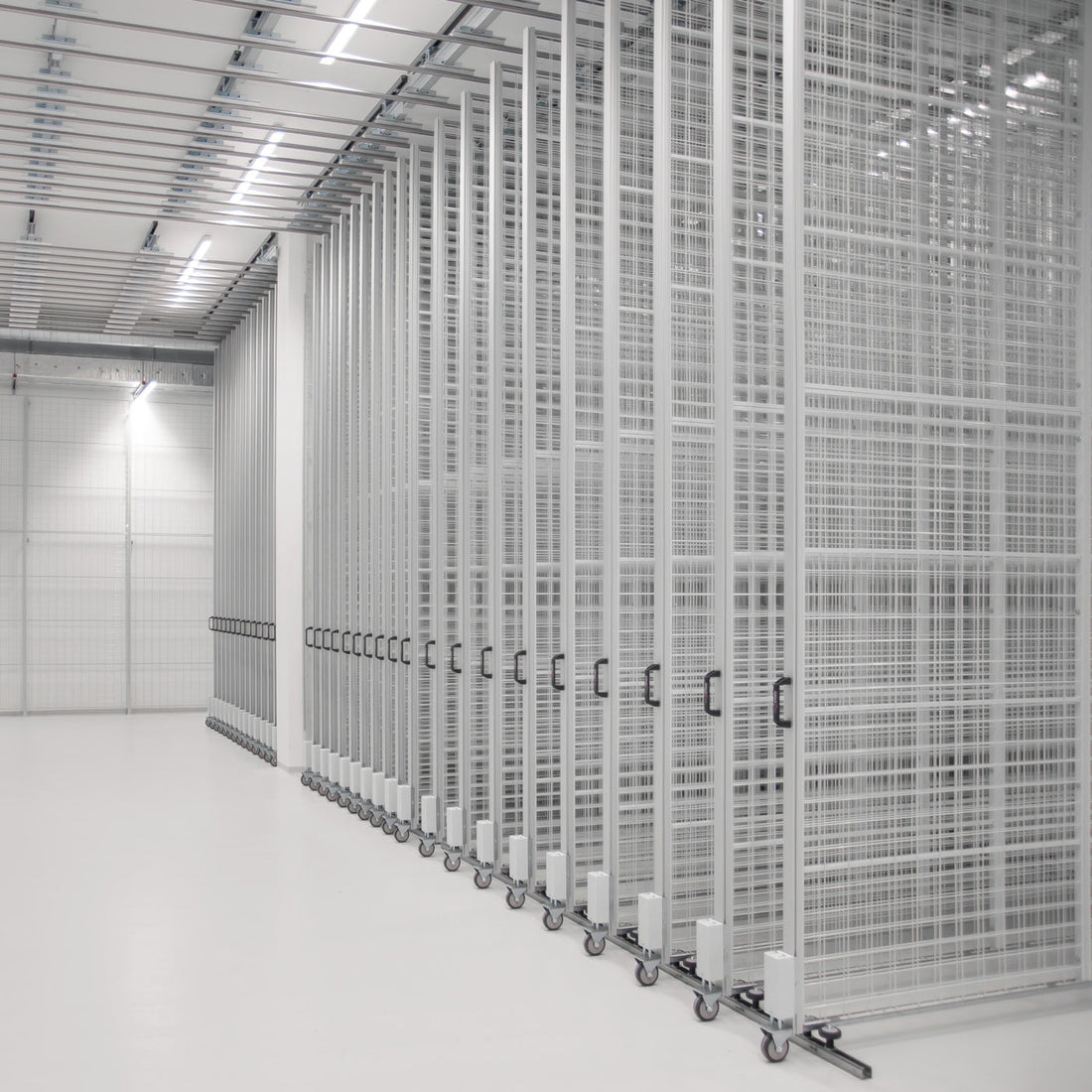

• Linear Guides: Vibration-free and shock-free operation via linear housings and ball bushings running on high-precision linear shafts. Ideal for large or small pull-out racks with high quality requirements and heavy loads.

Paintings are hung securely from hooks on lattice sliding walls or pull-out panels, with direct front-side access to each work. Systems are engineered to specification — contact us for a custom consultation.
